Get started with tidymodels and classification of penguin

R
Author

Tony Duan

Published

January 28, 2023

Code
library(tidymodels)
library(tidyverse)
library(palmerpenguins)

1. download data

Code
glimpse(penguins)
Rows: 344
Columns: 8
$ species           <fct> Adelie, Adelie, Adelie, Adelie, Adelie, Adelie, Adel…
$ island            <fct> Torgersen, Torgersen, Torgersen, Torgersen, Torgerse…
$ bill_length_mm    <dbl> 39.1, 39.5, 40.3, NA, 36.7, 39.3, 38.9, 39.2, 34.1, …
$ bill_depth_mm     <dbl> 18.7, 17.4, 18.0, NA, 19.3, 20.6, 17.8, 19.6, 18.1, …
$ flipper_length_mm <int> 181, 186, 195, NA, 193, 190, 181, 195, 193, 190, 186…
$ body_mass_g       <int> 3750, 3800, 3250, NA, 3450, 3650, 3625, 4675, 3475, …
$ sex               <fct> male, female, female, NA, female, male, female, male…
$ year              <int> 2007, 2007, 2007, 2007, 2007, 2007, 2007, 2007, 2007…

2. plot

Code
penguins %>%
  filter(!is.na(sex)) %>%
  ggplot(aes(flipper_length_mm, bill_length_mm, color = sex, size = body_mass_g)) +
  geom_point(alpha = 0.5) +
  facet_wrap(~species)

3. data preparation

Code
penguins_df <- penguins %>%
  filter(!is.na(sex)) %>%
  select(-year, -island)

split data 75% to traning and 25% to testing with sex as strata

Code
set.seed(123)
penguin_split <- initial_split(penguins_df, strata = sex)
penguin_train <- training(penguin_split)
penguin_test <- testing(penguin_split)
Code
dim(penguin_train)
[1] 249   6
Code
dim(penguin_test)
[1] 84  6
Code
nrow(penguin_train)/nrow(penguin_test)
[1] 2.964286

bootstraps sample

Code
set.seed(123)
penguin_boot <- bootstraps(penguin_train)
penguin_boot
# Bootstrap sampling
# A tibble: 25 × 2
   splits           id
   <list>           <chr>
 1 <split [249/93]> Bootstrap01
 2 <split [249/91]> Bootstrap02
 3 <split [249/90]> Bootstrap03
 4 <split [249/91]> Bootstrap04
 5 <split [249/85]> Bootstrap05
 6 <split [249/87]> Bootstrap06
 7 <split [249/94]> Bootstrap07
 8 <split [249/88]> Bootstrap08
 9 <split [249/95]> Bootstrap09
10 <split [249/89]> Bootstrap10
# … with 15 more rows

logistic model

Code
glm_spec <- logistic_reg() %>%
  set_engine("glm")

glm_spec
Logistic Regression Model Specification (classification)

Computational engine: glm

randown forest model

Code
rf_spec <- rand_forest() %>%
  set_mode("classification") %>%
  set_engine("ranger")

rf_spec
Random Forest Model Specification (classification)

Computational engine: ranger

build workflow

Code
penguin_wf <- workflow() %>%
  add_formula(sex ~ .)

penguin_wf
══ Workflow ════════════════════════════════════════════════════════════════════
Preprocessor: Formula
Model: None

── Preprocessor ────────────────────────────────────────────────────────────────
sex ~ .

train logistic model

Code
glm_rs <- penguin_wf %>%
  add_model(glm_spec) %>%
  fit_resamples(
    resamples = penguin_boot,
    control = control_resamples(save_pred = TRUE)
  )

glm_rs
# Resampling results
# Bootstrap sampling
# A tibble: 25 × 5
   splits           id          .metrics         .notes           .predictions
   <list>           <chr>       <list>           <list>           <list>
 1 <split [249/93]> Bootstrap01 <tibble [2 × 4]> <tibble [0 × 3]> <tibble>
 2 <split [249/91]> Bootstrap02 <tibble [2 × 4]> <tibble [0 × 3]> <tibble>
 3 <split [249/90]> Bootstrap03 <tibble [2 × 4]> <tibble [0 × 3]> <tibble>
 4 <split [249/91]> Bootstrap04 <tibble [2 × 4]> <tibble [0 × 3]> <tibble>
 5 <split [249/85]> Bootstrap05 <tibble [2 × 4]> <tibble [1 × 3]> <tibble>
 6 <split [249/87]> Bootstrap06 <tibble [2 × 4]> <tibble [0 × 3]> <tibble>
 7 <split [249/94]> Bootstrap07 <tibble [2 × 4]> <tibble [0 × 3]> <tibble>
 8 <split [249/88]> Bootstrap08 <tibble [2 × 4]> <tibble [1 × 3]> <tibble>
 9 <split [249/95]> Bootstrap09 <tibble [2 × 4]> <tibble [0 × 3]> <tibble>
10 <split [249/89]> Bootstrap10 <tibble [2 × 4]> <tibble [0 × 3]> <tibble>
# … with 15 more rows

There were issues with some computations:

  - Warning(s) x3: glm.fit: fitted probabilities numerically 0 or 1 occurred

Run `show_notes(.Last.tune.result)` for more information.

train random forest model

Code
rf_rs <- penguin_wf %>%
  add_model(rf_spec) %>%
  fit_resamples(
    resamples = penguin_boot,
    control = control_resamples(save_pred = TRUE)
  )

rf_rs
# Resampling results
# Bootstrap sampling
# A tibble: 25 × 5
   splits           id          .metrics         .notes           .predictions
   <list>           <chr>       <list>           <list>           <list>
 1 <split [249/93]> Bootstrap01 <tibble [2 × 4]> <tibble [0 × 3]> <tibble>
 2 <split [249/91]> Bootstrap02 <tibble [2 × 4]> <tibble [0 × 3]> <tibble>
 3 <split [249/90]> Bootstrap03 <tibble [2 × 4]> <tibble [0 × 3]> <tibble>
 4 <split [249/91]> Bootstrap04 <tibble [2 × 4]> <tibble [0 × 3]> <tibble>
 5 <split [249/85]> Bootstrap05 <tibble [2 × 4]> <tibble [0 × 3]> <tibble>
 6 <split [249/87]> Bootstrap06 <tibble [2 × 4]> <tibble [0 × 3]> <tibble>
 7 <split [249/94]> Bootstrap07 <tibble [2 × 4]> <tibble [0 × 3]> <tibble>
 8 <split [249/88]> Bootstrap08 <tibble [2 × 4]> <tibble [0 × 3]> <tibble>
 9 <split [249/95]> Bootstrap09 <tibble [2 × 4]> <tibble [0 × 3]> <tibble>
10 <split [249/89]> Bootstrap10 <tibble [2 × 4]> <tibble [0 × 3]> <tibble>
# … with 15 more rows

4. Evaluate model

random forest model result

Code
collect_metrics(rf_rs)
# A tibble: 2 × 6
  .metric  .estimator  mean     n std_err .config
  <chr>    <chr>      <dbl> <int>   <dbl> <chr>
1 accuracy binary     0.912    25 0.00547 Preprocessor1_Model1
2 roc_auc  binary     0.977    25 0.00202 Preprocessor1_Model1
Code
rf_rs %>%
  conf_mat_resampled()
# A tibble: 4 × 3
  Prediction Truth   Freq
  <fct>      <fct>  <dbl>
1 female     female 40.5
2 female     male    3
3 male       female  4.96
4 male       male   42.3

logistic model result

Code
collect_metrics(glm_rs)
# A tibble: 2 × 6
  .metric  .estimator  mean     n std_err .config
  <chr>    <chr>      <dbl> <int>   <dbl> <chr>
1 accuracy binary     0.918    25 0.00639 Preprocessor1_Model1
2 roc_auc  binary     0.979    25 0.00254 Preprocessor1_Model1
Code
glm_rs %>%
  conf_mat_resampled()
# A tibble: 4 × 3
  Prediction Truth   Freq
  <fct>      <fct>  <dbl>
1 female     female  41.1
2 female     male     3
3 male       female   4.4
4 male       male    42.3

logistic model ROC curve

Code
glm_rs %>%
  collect_predictions() %>%
  group_by(id) %>%
  roc_curve(sex, .pred_female) %>%
  ggplot(aes(1 - specificity, sensitivity, color = id)) +
  geom_abline(lty = 2, color = "gray80", size = 1.5) +
  geom_path(show.legend = FALSE, alpha = 0.6, size = 1.2) +
  coord_equal()

5. final train and fit

final train logistic model and fit on testing data

Code
penguin_final <- penguin_wf %>%
  add_model(glm_spec) %>%
  last_fit(penguin_split)

penguin_final
# Resampling results
# Manual resampling
# A tibble: 1 × 6
  splits           id               .metrics .notes   .predictions .workflow
  <list>           <chr>            <list>   <list>   <list>       <list>
1 <split [249/84]> train/test split <tibble> <tibble> <tibble>     <workflow>

final fitted workflow

Code
penguin_final$.workflow[[1]]
══ Workflow [trained] ══════════════════════════════════════════════════════════
Preprocessor: Formula
Model: logistic_reg()

── Preprocessor ────────────────────────────────────────────────────────────────
sex ~ .

── Model ───────────────────────────────────────────────────────────────────────

Call:  stats::glm(formula = ..y ~ ., family = stats::binomial, data = data)

Coefficients:
      (Intercept)   speciesChinstrap      speciesGentoo     bill_length_mm
       -1.042e+02         -8.892e+00         -1.138e+01          6.459e-01
    bill_depth_mm  flipper_length_mm        body_mass_g
        2.124e+00          5.654e-02          8.102e-03

Degrees of Freedom: 248 Total (i.e. Null);  242 Residual
Null Deviance:      345.2
Residual Deviance: 70.02    AIC: 84.02

final result:

Code
collect_metrics(penguin_final)
# A tibble: 2 × 4
  .metric  .estimator .estimate .config
  <chr>    <chr>          <dbl> <chr>
1 accuracy binary         0.857 Preprocessor1_Model1
2 roc_auc  binary         0.938 Preprocessor1_Model1
Code
collect_predictions(penguin_final) %>%
  conf_mat(sex, .pred_class)
          Truth
Prediction female male
    female     37    7
    male        5   35

final model:

Code
penguin_final$.workflow[[1]] %>%
  tidy(exponentiate = TRUE) %>% mutate(estimate=round(estimate,4),
                                       p.value=format(p.value,scientific=F)


                                       )
# A tibble: 7 × 5
  term              estimate std.error statistic p.value
  <chr>                <dbl>     <dbl>     <dbl> <chr>
1 (Intercept)         0       19.6        -5.31  0.0000001100699
2 speciesChinstrap    0.0001   2.34       -3.79  0.0001482542395
3 speciesGentoo       0        3.75       -3.03  0.0024322352395
4 bill_length_mm      1.91     0.180       3.60  0.0003213825406
5 bill_depth_mm       8.36     0.478       4.45  0.0000086812196
6 flipper_length_mm   1.06     0.0611      0.926 0.3546535881832
7 body_mass_g         1.01     0.00176     4.59  0.0000044154909

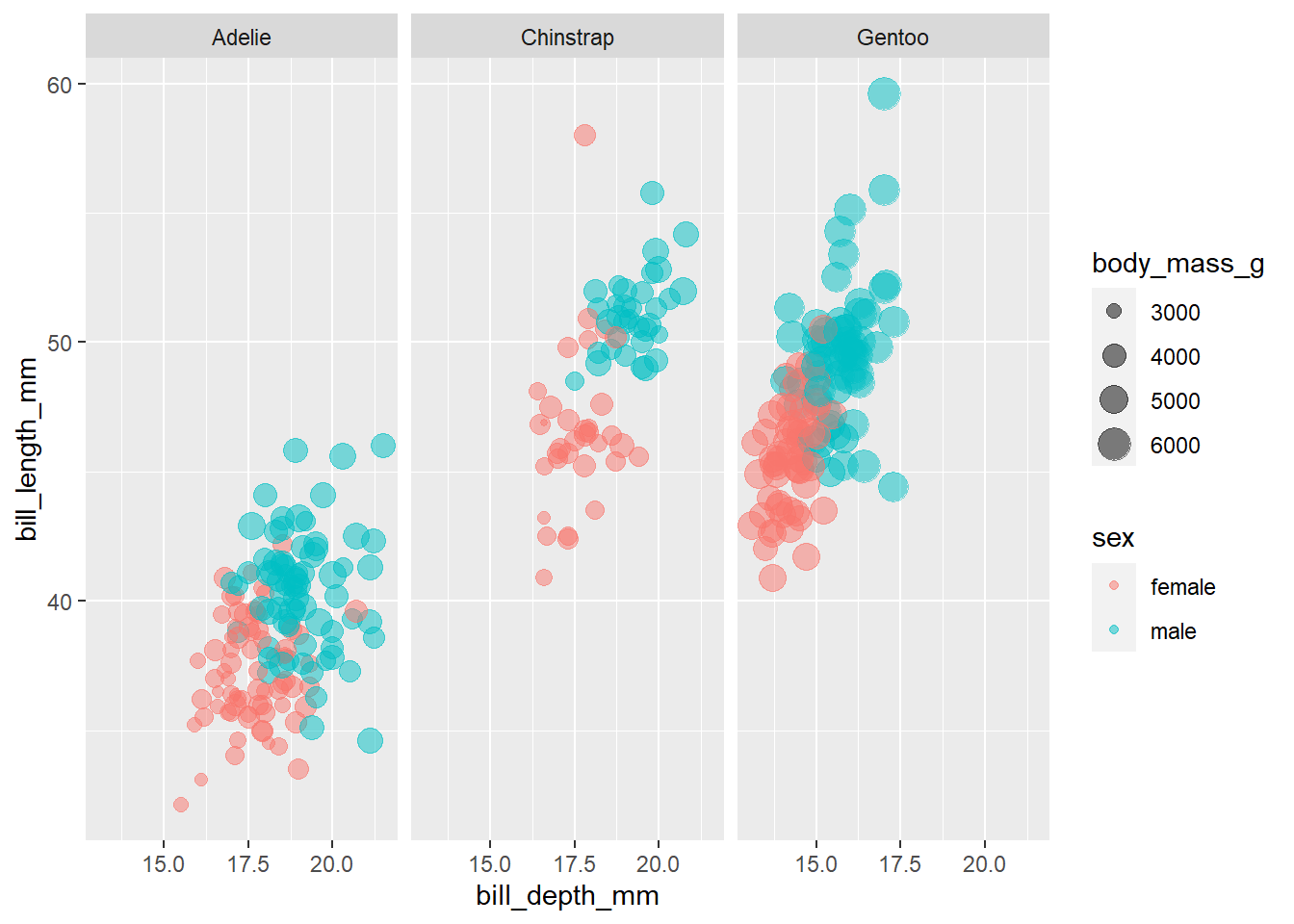

Code
penguins %>%
  filter(!is.na(sex)) %>%
  ggplot(aes(bill_depth_mm, bill_length_mm, color = sex, size = body_mass_g)) +
  geom_point(alpha = 0.5) +
  facet_wrap(~species)

Reference

https://www.youtube.com/watch?v=z57i2GVcdww

https://juliasilge.com/blog/palmer-penguins/
